Graph Theory

[TOC]

Basic Definitions

1. $G=\langle V, E, \mathcal{E}\rangle$ $V={v_1,\cdots,v_n}$ $E={e_1,e_2,\cdots,e_m}$

   1. 对于不同种类的图可以适当简化。

   2. 有时，我们写$G=<V,E>$ 边与点的连接关系由图直观的表现出来

2. special graphs:

   • empty graph：no edges
   • complete graph: each pair of vertices are connected

3. 一些概念：

   • adjacent:相邻的

   • edge $e$ is incident（关联）with $v$ and $v’$

   • $e=<v,v’>$, v is predecessor（前驱）,$v’$ is successor（后继）

   • degree：out-degree + in-degree(directed)

   • $\displaystyle\sum_{v\in V}d(v)=2m(m是总边数)$

   • 对于有向图：出度和=入度和

   • sub-graph：子图；sub-graph induced by $V’$：由$v’$生成的诱导子图

4. isomorphic：同构 $\text { denoted by } G_1 \cong G_2$

   关键：找双射

   几个必要条件：

   • $\left|V_1\right|=\left|V_2\right|$ and $\left|E_1\right|=\left|E_2\right|$.
     1. The non-increasing sequences of vertices degrees of $G_1$ and $G_2$ are the same.（度相同）
     2. For any induced graph of $G_1$, there is an induced sub-graph of $G_2$ such that these two induced sub-graphs are isomorphic.（腰斩后都相同）

   口诀：大图找小图，小图找度

5. path（道路）：

   • simple path: no repeated edges
   • elementary path: no repeated vertices
   • circuit：回路

6. connected(连通的)

   • connected component: 连通分支
   • strongly connected(for directed graph): 强连通的——考虑方向的连通

7. 欧拉回路与欧拉道路：

   • 欧拉回路:a simple circuit containing all edges.

   • 欧拉道路

   • A connected pseudo-graph $G=\langle V, E\rangle$ has an Euler circuit $\Leftrightarrow \forall v \in V: d(v)$ is even

   • A connected pseudo-graph $G=\langle V, E\rangle$ has an Euler path if and only if \(\mid\{v \in V: d(v) \text { is odd }\} \mid \leq 2\)

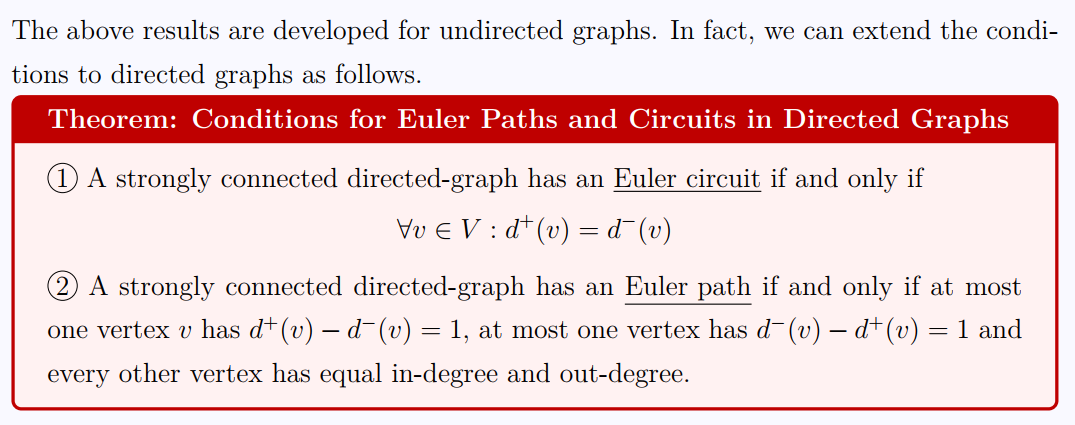

   • directed

   • 找法：不走割边/桥

8. 哈密顿回路与哈密顿道路

   • elementary circuit or path
   • np-Hard 问题
   • 几个充分条件：
     • Lemma: Let $P=v_1 v_2 \cdots v_l$ be a maximal elementary path. If $d\left(v_1\right)+d\left(v_l\right) \geq l$, then there must exist an elementary circuit that passes through $v_1, v_2, \cdots, v_l$.
     • theorem:Sufficient Condition for Hamilton Path a simple-graph $G = \left( V , E \right)$ has a Hamilton path if $\forall u, v ^ { \prime } \in V : d \left( v \right) + d \left( v ^ { \prime } \right) \geqslant n - 1$
     • theorem:Sufficient Condition for Hamilton Circuit a simple-graph $G = \left( V , E \right)$ has a Hamilton circuit if $\forall u, v ^ { \prime } \in V : d \left( v \right) + d \left( v ^ { \prime } \right) \geqslant n$

Trees

1. 几个等价定义：

   $T=\langle V, E\rangle$ (1) $T$ is a connected and $|E|=|V|-1$; (2) $T$ has no circuit and $|E|=|V|-1$; (3) $T$ is connected and each edge is a bridge; (4) $T$ has no circuit and by adding any edge, we will have a circuit; (5) the path between any two vertices is unique.

2. 几个概念：

   1.vertices with degree one leaves (树叶).

   2.Disconnected graphs with no circuit are called forest (森林).

3. Theorem:

   (1) For tree $T$ w ith $

   V

   \geq 2$, there are at least two leaves,

   (2) For forest $F$ with $

   V

   =n$ and $k$ connected components, we have $

   E

   =n-k$.

4. Spanning Trees（生成树） A sub-graph of $G$ is called a spanning tree (生成树) of $G$ if

(i) it is a tree; and

(ii) it contains all vertices of $G$.

1. Depth-First Search (深度优先搜索)

   (i) keep adding new edges until no edge can be added

   (ii) track back to the vertice at which some edge can be added, and repeat.

2. Breadth-First Search (广度优先搜索)

   • start from a vertex

   • at the kth iteration, add all vertices that are k-close to the initial vertex.

3. weighted graph (加权图)

   • The weight of a graph, denoted by w(G)
   • a minimum spanning tree (最小生成树) T is spanning tree such that, for any spanning tree T′, we have $w(T) ≤ w(T’)$

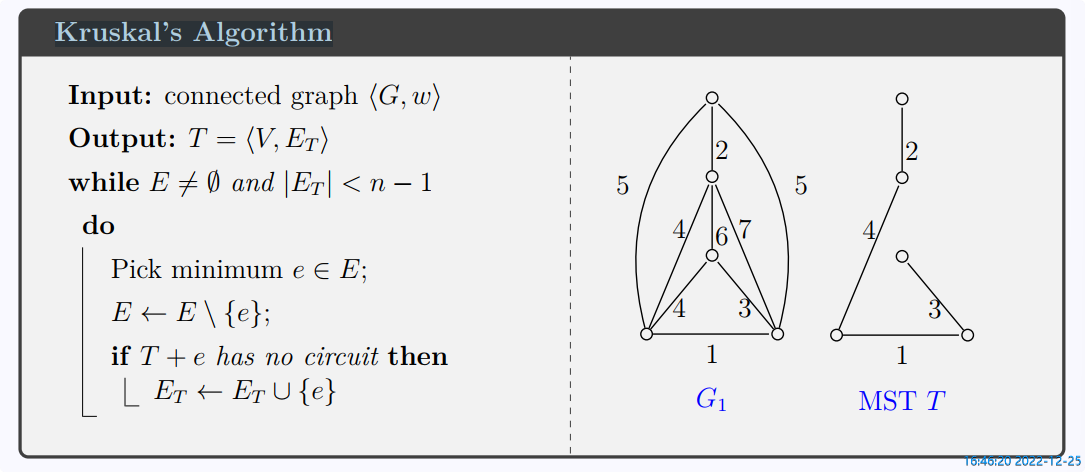

   • Kruskal’s Algorithm:

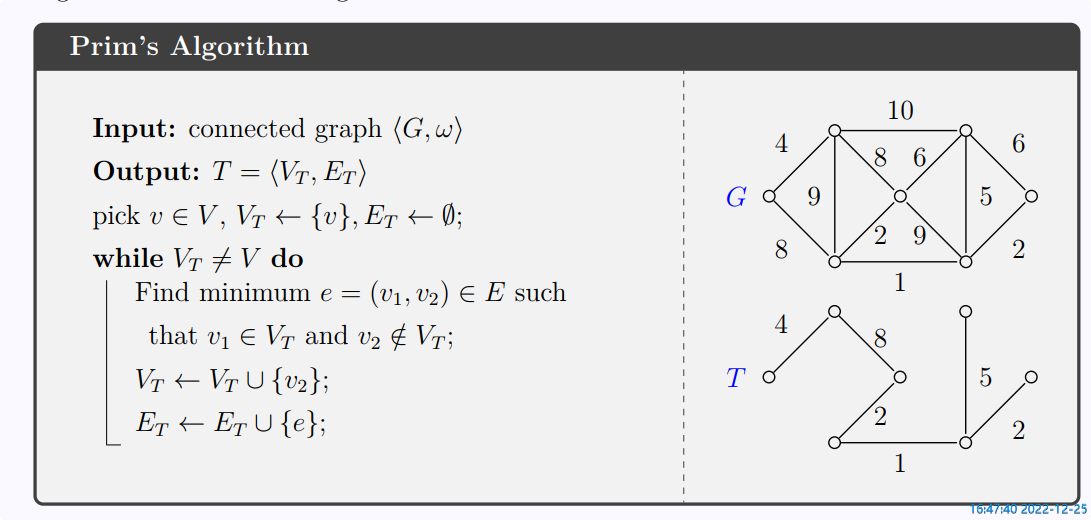

   • Prim’s Algorithm
